Data Annotation Column Attribute in EF Core

The Entity Framework core conventions name the database column name after the property names. You can override this behavior using the Column Attribute.

Table of Contents

Column Convention
Column Attribute
References

Column Convention

Consider the following model. The Default convention names the database fields after the property name. The Data type of property determines the data type of the field. The order of the fields in tables follows the order in which properties defined in the model.

    public class Customer
    {
        public int CustomerID { get; set; }
        public string Name { get; set; }
    }

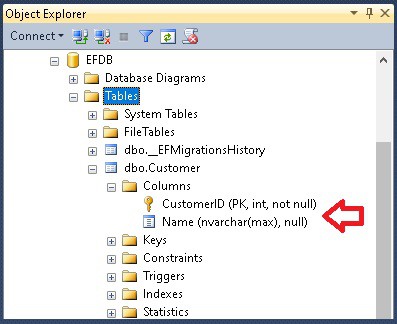

The following table shows data type to column type mapping. Since Name is a string is it mapped to nvarchar(max).

Data type	Mapped	Null ?
string	nvarchar(max)	Null
decimal	decimal(18, 2)	Not Null
decimal?	decimal(18, 2)	Null
double	float	Not Null
double?	float	Null
int	int	Not Null
int?	int	Null
bool	bit	Not Null
bool?	bit	Null
DateTime	datetime	Not Null
DateTime?	datetime	Null
byte[]	varbinary(max)	Null
byte	tinyint	Not Null
byte?	tinyint	Null
uint	biint	not null
uint?	biint ?	null
short	smallint	not null
ushort	int	not null
char	nvarchar(1)	not null

Column Attribute

By Applying the Column attribute, we can change the column name, datatype, and order of the column. The attribute takes the following argument

[Column (string name, Properties:[Order = int],[TypeName = string])

Where
Name: Name of the database column
Order: Sets the zero-based Order of the field in the table
TypeName: Database Provider-specific data type of the column the property

Column Name

Column attributes used to specify the column names. EF by convention creates the columns using the property name. If the Column attribute is present, then the EF will use the attribute value as the column name when creating the table

public class Customer
{
    public int CustomerID { get; set; }

    [Column("CustomerName")]
    public string Name { get; set; }
}

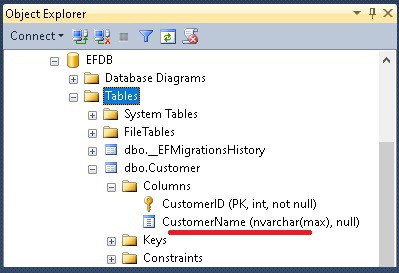

Note that CustomerName has field length set as nvarchar(max)

Data type

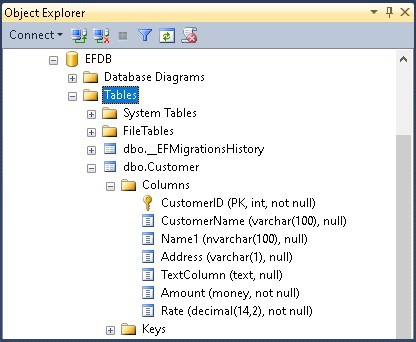

Use the TypeName option to set the data type of the column. In the following example, EmployeeName is set as the varchar(100) datatype. Name1 is set as the nvarchar(100) datatype etc.

    public class Customer
    {
        public int CustomerID { get; set; }

        [Column("CustomerName", TypeName = "varchar(100)")]
        public string Name { get; set; }

        [Column(TypeName = "nvarchar(100)")]
        public string Name1 { get; set; }

        [Column(TypeName = "varchar")]
        public string Address { get; set; }

        [Column(TypeName = "text")]
        public string TextColumn { get; set; }

        [Column(TypeName = "money")]
        public decimal Amount { get; set; }

        [Column(TypeName = "decimal(14,2)")]
        public decimal Rate { get; set; }

    }

TypeName attribute is different from the DataType data annotation attribute, which is used only for the UI Validations. Note that TypeName = "varchar" converts to varchar(1) column

Column Order

Specify the order of the column using the Order option. The Order can be any integer value. The EF will create the column based on the Order specified. The Unordered column appears after the ordered column.

EF Core does not currently support the Column Order. You can follow the issue from here

public class Customer
{
    [Column(Order = 1)]
    public int CustomerID { get; set; }

    [Column("CustomerName", TypeName = "varchar(100)", Order = 7)]
    public string Name { get; set; }

    [Column(TypeName = "nvarchar(100)", Order = 6)]
    public string Name1 { get; set; }

    [Column(TypeName = "varchar", Order = 5)]
    public string Address { get; set; }

    [Column(TypeName = "text", Order = 4)]
    public string TextColumn { get; set; }

    [Column(TypeName = "money", Order = 3)]
    public decimal Amount { get; set; }

    [Column(TypeName = "decimal(14,2)", Order = 2)]
    public decimal Rate { get; set; }

}
