Using ExhaustMap in Angular

The Angular ExhaustMap maps each value from the source observable into an inner observable, subscribes to it. It then starts emitting the values from it replacing the original value. It then waits for the inner observable to finish. If it receives any new values before the completion of the inner observable it ignores it. It receives a new value after completion of the inner observable, then it creates a new inner observable. The whole process repeats itself until the source observable is completes

Table of Contents

Syntax
ExhaustMap Example
ExhaustMap waits for the inner observable to finish
Using ExhaustMap in Angular
References

Syntax

The syntax of the exhaustMap operator is as shown below.

exhaustMap(project: (value: T, index: number) => O): OperatorFunction<T, ObservedValueOf<O>>

project: is a function that we use to manipulate the values emitted by the source observable. The project function accepts two arguments. one is value i.e. the value emitted by the source observable. The second argument is index number. The index number starts from 0 for the first value emitted and incremented by one for every subsequent value emitted. It is similar to the index of an array. The project function must return an observable.

ExhaustMap Example

To use ExhaustMap in Angular first we need to import it our Component or Service.

import { exhaustMap} from 'rxjs/operators';

In the following code, we have two observables srcObservable which emits 1,2,3,4 & innerObservable which emits 'A','B','C','D'.

let srcObservable= of(1,2,3,4)

let innerObservable= of('A','B','C','D')

srcObservable.pipe(

exhaustMap( val => {

console.log('Source value '+val)

console.log('starting new observable')

return innerObservable

})

)

.subscribe(ret=> {

console.log('Recd ' + ret);

})

//Output

Source value 1

starting new observable

Recd A

Recd B

Recd C

Recd D

Source value 2

starting new observable

Recd A

Recd B

Recd C

Recd D

Source value 3

starting new observable

Recd A

Recd B

Recd C

Recd D

Source value 4

starting new observable

Recd A

Recd B

Recd C

Recd D

The ExhaustMap receives its values from the srcObservable. For each value, it creates a new observable i.e. innerObservable. It also automatically subscribes to the innerObservable. The innerObservable emits the values (A, B, C, D), and pushes it to the subscribers.

The ExhaustMap differs from the MergeMap, SwitchMap & ConcatMap the way it handles the inner observable. ExhaustMap always waits for the inner observable to finish. It ignores any value it receives from the source during this period. Any value it receives after the inner observable is finished is accepted and it creates a new inner observable.

This difference is becomes clear in the next example.

ExhaustMap waits for the inner observable to finish

ExhaustMap creates and waits for inner observable before resuming.

In the following example, we create an observable from the click event of a button using the fromEvent method. On every click of the button, the ExhaustMap operator returns an inner observable delayedObs

The delayedObs emits 5 values separated by 1000 ms.

import { Component, OnInit, ViewChild, AfterViewInit } from '@angular/core';

import { of, from, fromEvent, interval, Observable } from 'rxjs';

import { switchMap, map, catchError } from 'rxjs/operators';

@Component({

selector: 'app-root',

template: `<button #button>Click Me</button>`,

})

export class AppComponent implements AfterViewInit{

@ViewChild('button',{static:true}) button;

clicks$:Observable<any>;

ngAfterViewInit() {

this.clicks$ = fromEvent(this.button.nativeElement, 'click');

this.exhaustMapExample3();

}

delayedObs(count:number) {

return new Observable((observer) => {

setTimeout(() => { observer.next(count+" A") }, 1000);

setTimeout(() => { observer.next(count+" B") }, 2000);

setTimeout(() => { observer.next(count+" C") }, 3000);

setTimeout(() => { observer.next(count+" D") }, 4000);

setTimeout(() => { observer.next(count+" E"); observer.complete() }, 5000);

})

}

exhaustMapExample3() {

let obs=

this.clicks$

.pipe(

exhaustMap(() => {

this.count=this.count+1;

return this.delayedObs(this.count)

})

)

.subscribe(val => console.log(val));

}

When you click on the button, the clicks observable emits its first value. Inside the exhaustMapwe increase the count by 1 and pass it to the delayedObs. The exhaustMapsubscribes to the delayedObs. It starts emitting values A to E prepended by the count.

When you click again, the exhaustMapchecks to see if the previous observable has finished. If not it ignore the value.

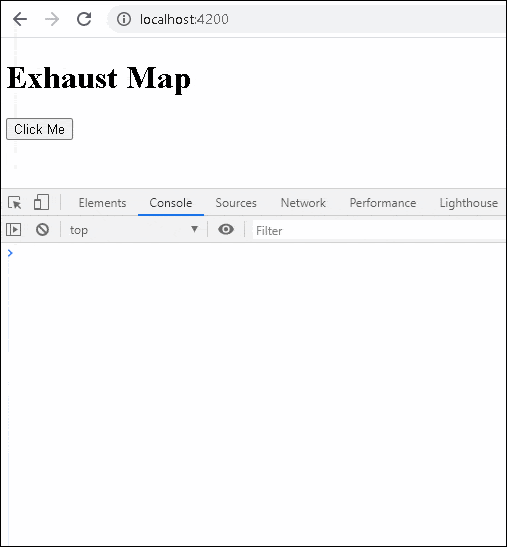

You can verify it from the following result. When we click multiple times, it ignores the values when the inner observable is running.
